Description

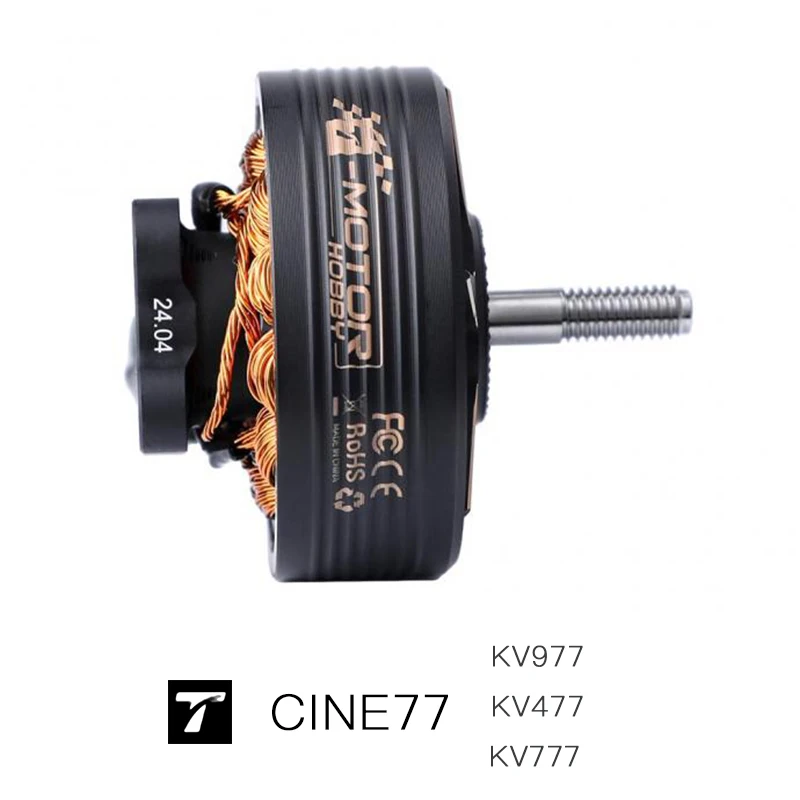

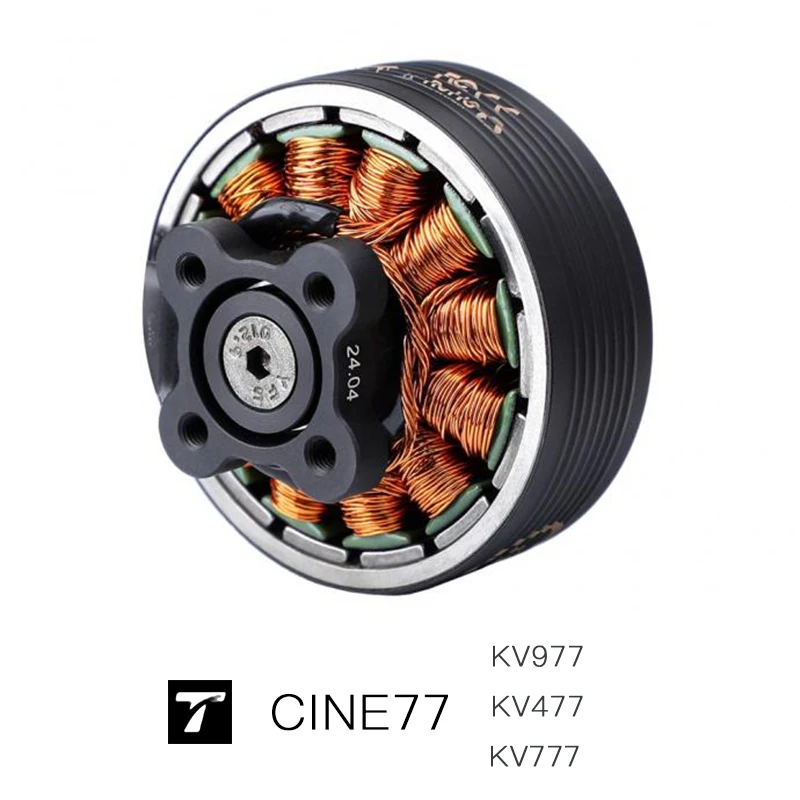

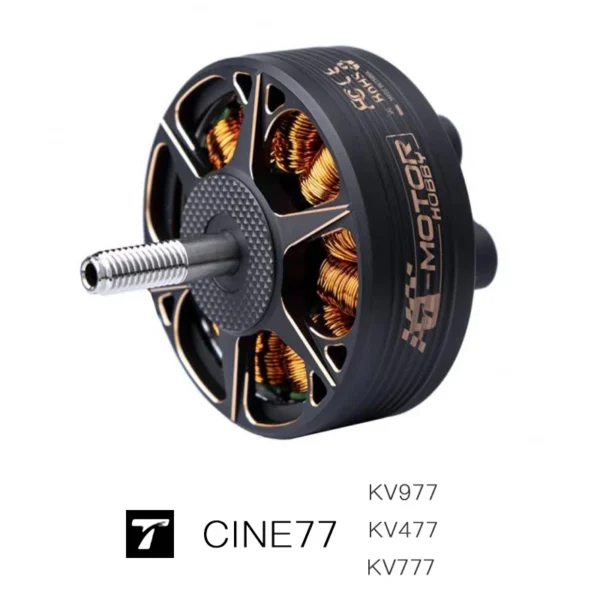

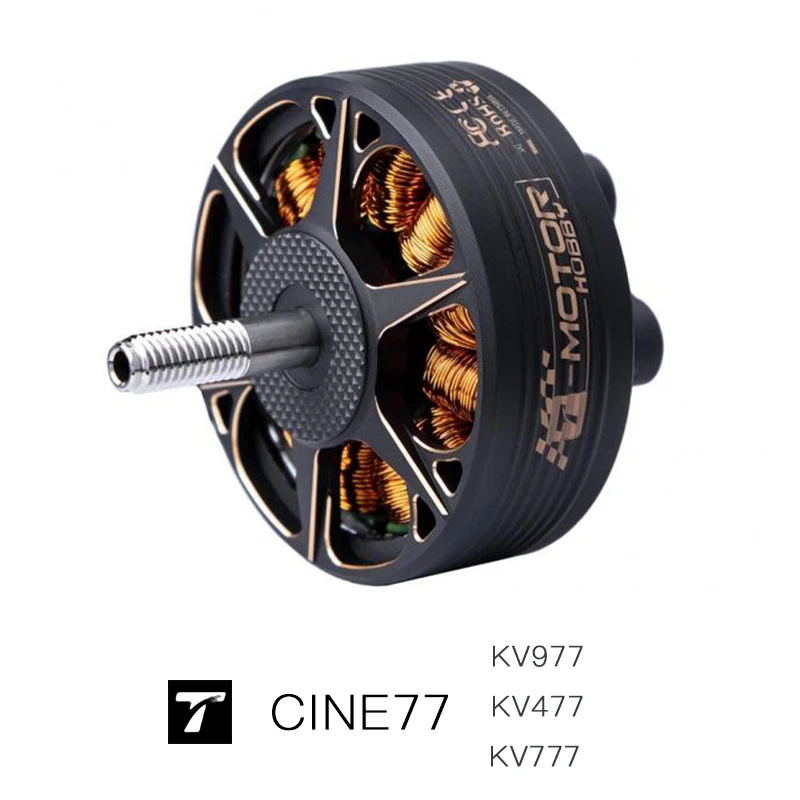

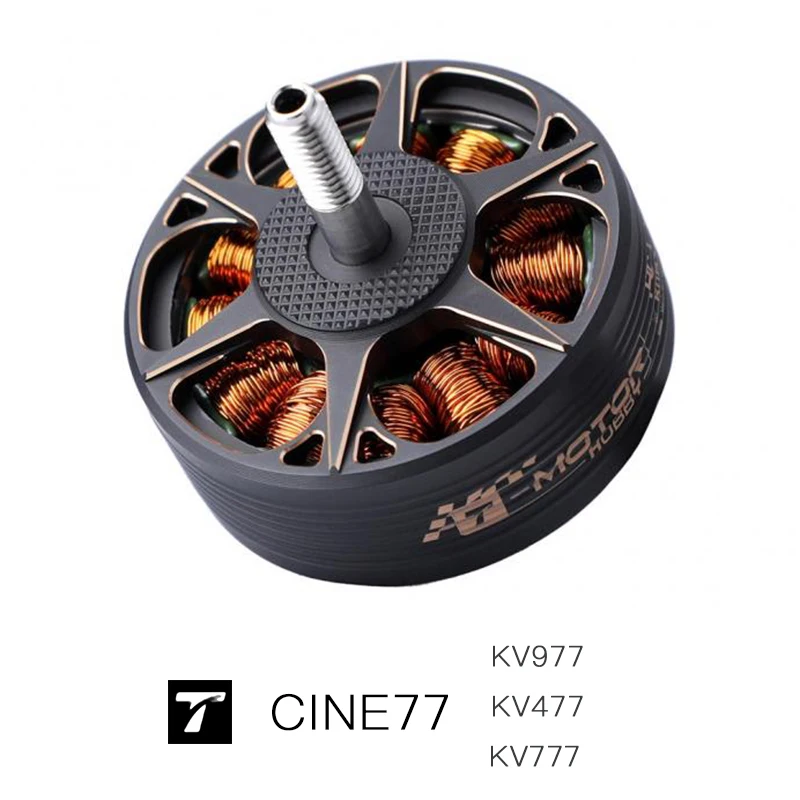

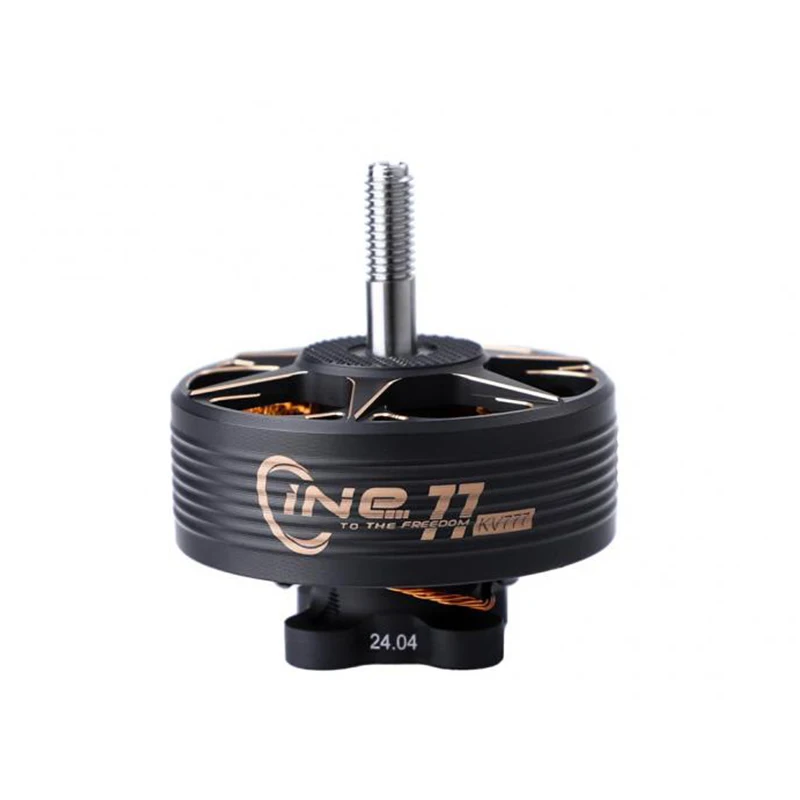

The CINE77 is a cinematic-grade FPV motor built for 9-10″ X4/X8 drones, delivering up to 6 kg of thrust per motor and compatible with 6S, 8S or 12S setups. It offers smooth, stable footage thanks to a wide stator for enhanced torque and superior cooling for reliability in demanding flight. With payloads around 2.5 kg it achieves over 7 minutes of flight time.
Construction details include IP-rated waterproof/dustproof design, nickel-plated arc magnets, dynamic balance to ≤5
mg, and high-quality bearings.
mg, and high-quality bearings.
|

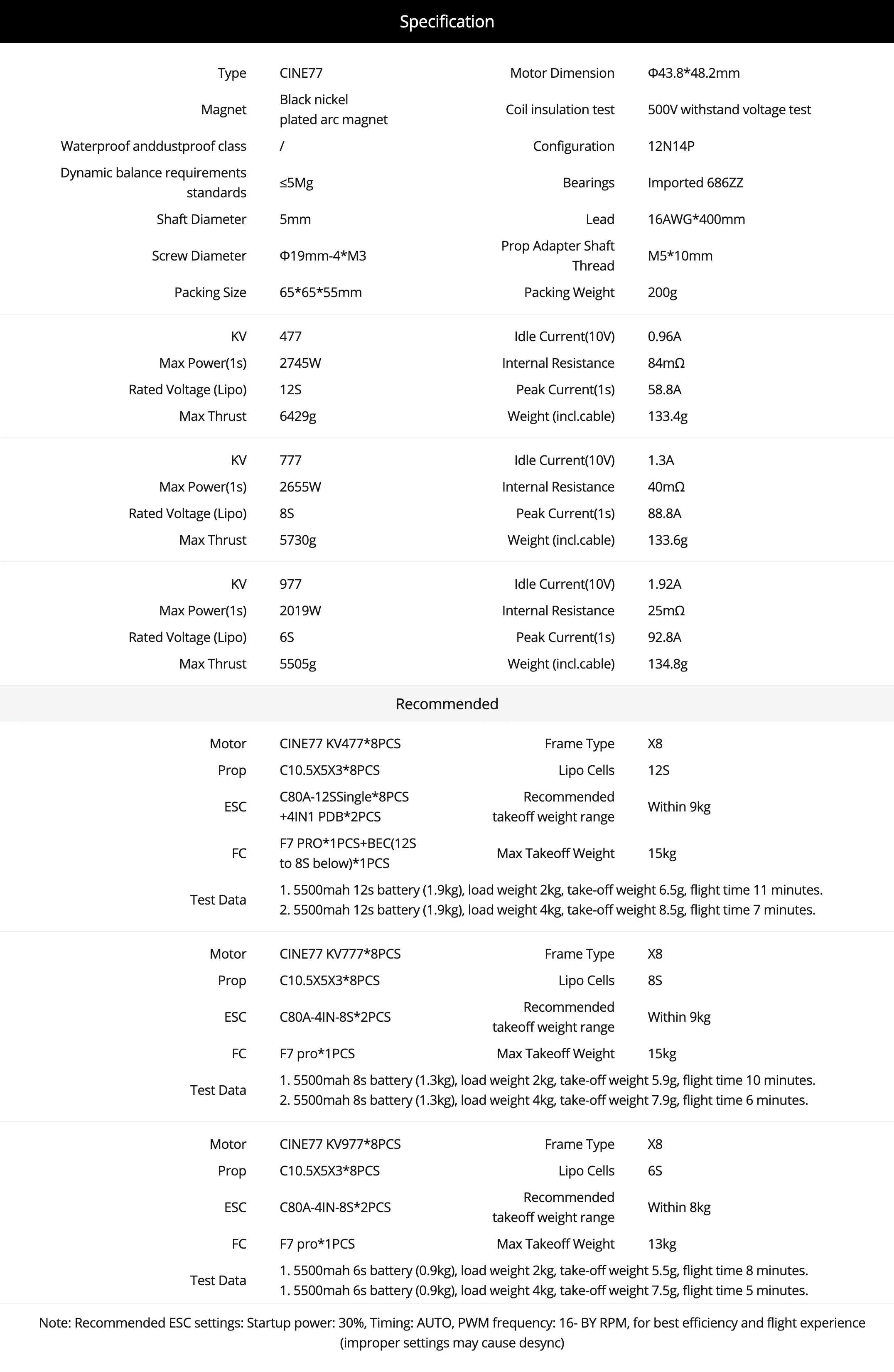

Type
|
CINE77
|
Motor Dimension
|

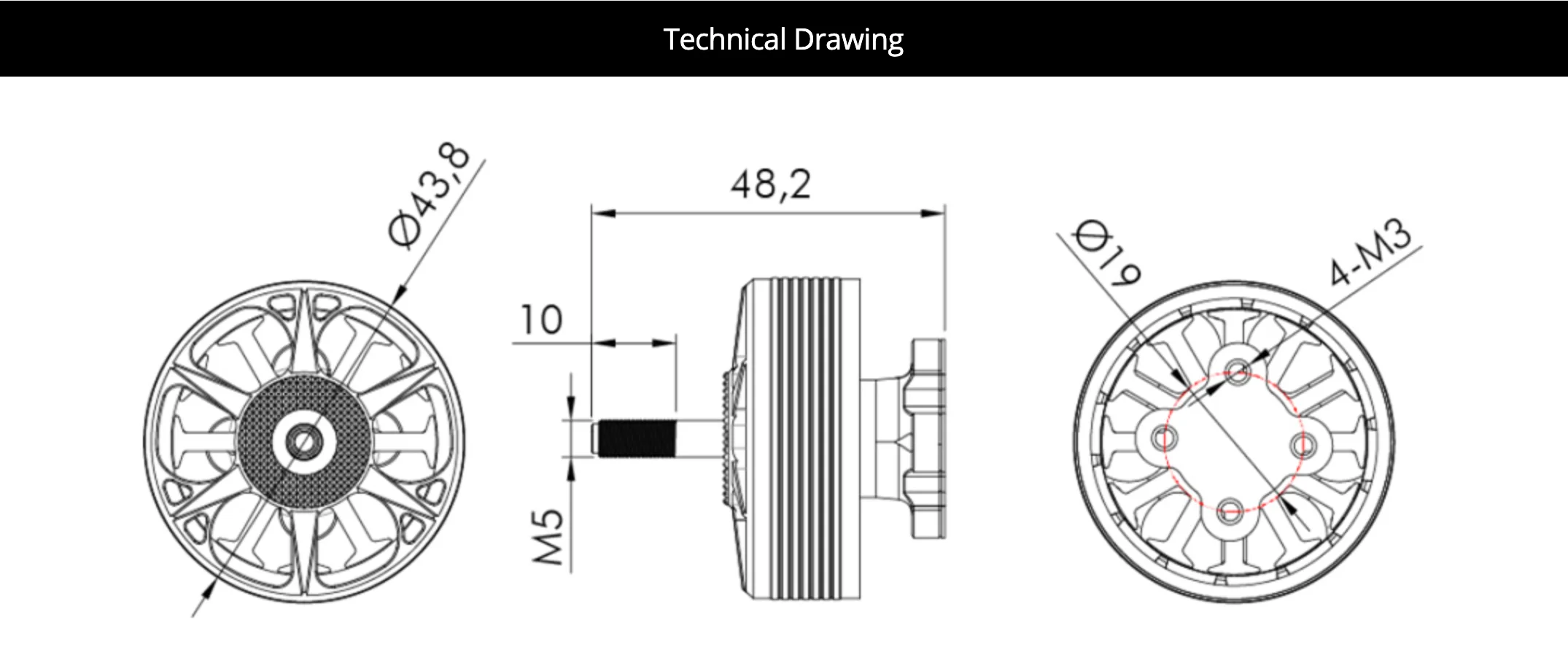

Φ43.8*48.2mm
|
|
Magnet
|
Black nickel
plated arc magnet |
Coil insulation test
|
500V withstand voltage test
|
|
Waterproof anddustproof class
|
/
|
Configuration
|
12N14P
|
|
Dynamic balance requirements standards
|
≤5Mg
|
Bearings
|
Imported 686ZZ
|
|
Shaft Diameter
|
5mm
|
Lead
|
16AWG*400mm
|
|
Screw Diameter
|
Φ19mm-4*M3
|
Prop Adapter Shaft Thread
|
M5*10mm
|
