Description
| Channel | 8CH |
| Power | PIT 25mW / 200mW / 2000mW |
| Control protocol | IRC Tramp (supports OSD parameter adjustment) |
| Power supply | High-efficiency DC/DC power supply |
| power supply supports | 7-36V |

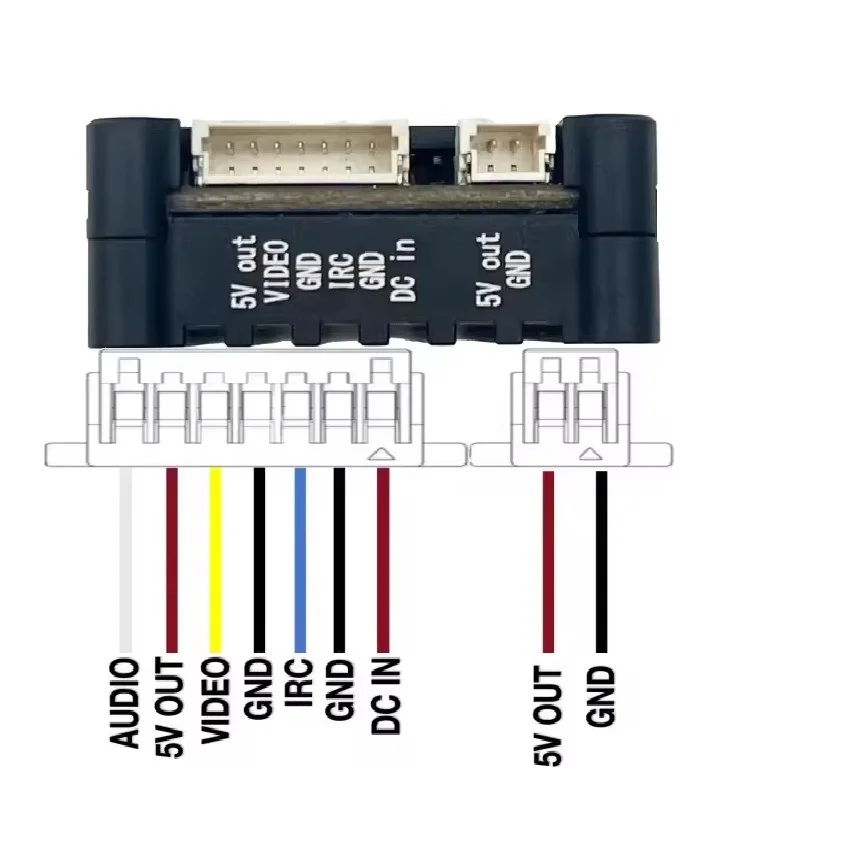

| Features | Selected high-strength aluminum alloy CNC shell for heat dissipation to enhance power and stable emission; Support external audio input; Support 5V voltage output |
Product parameters
Transmitter (air unit):Input voltage: 7-36V DC (2-6S)
Output voltage: 5V/0.5A
Video format: PAL/NTSC
Number of channels: 8 channels

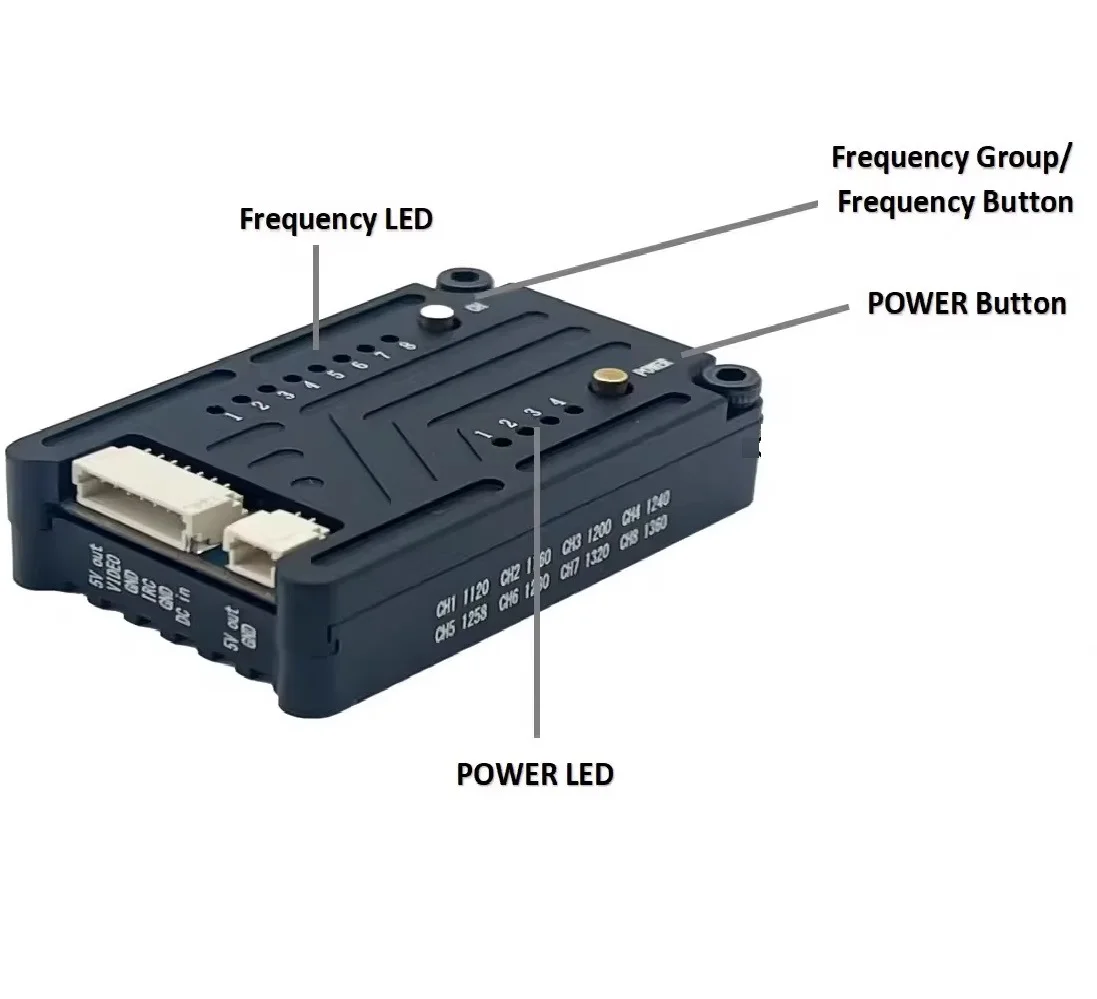

Channel selection: Frequency adjustment button: short press to switch frequency
Transmission frequency: 8CH, see the frequency table for details
Transmit power: 33dBm±1dBm(MAX)
Power adjustment: power adjustment button, short press to switch
Power number: four levels, 25mW, 200mW, 2000mW;

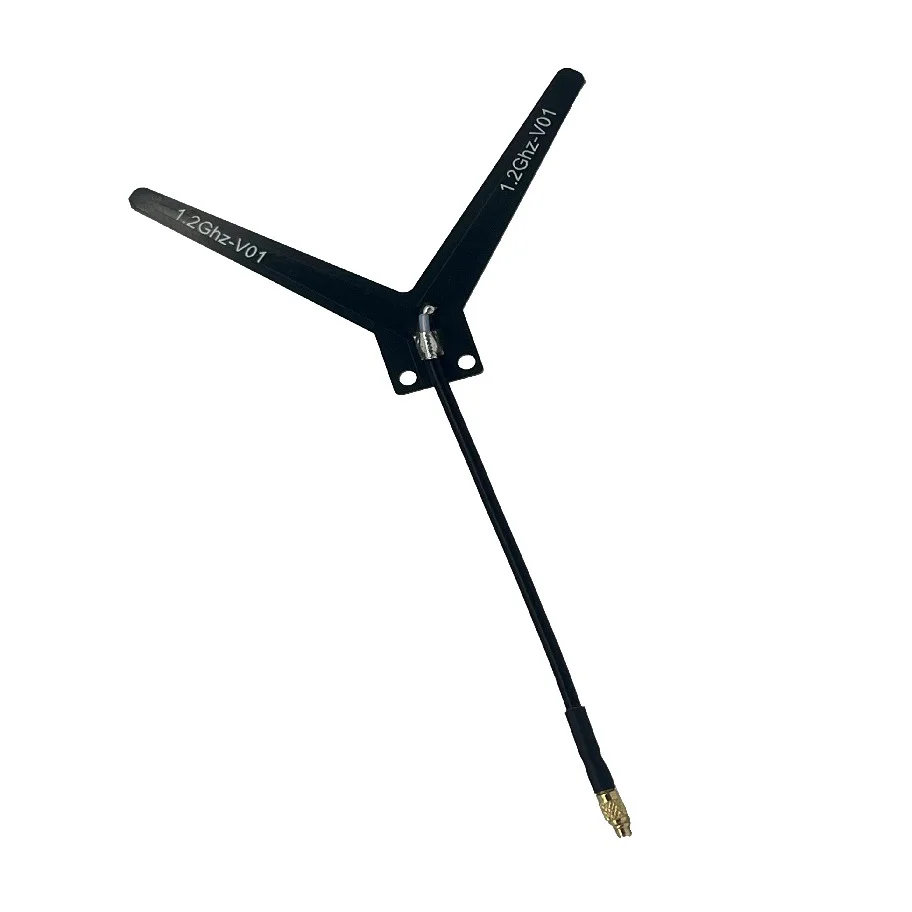

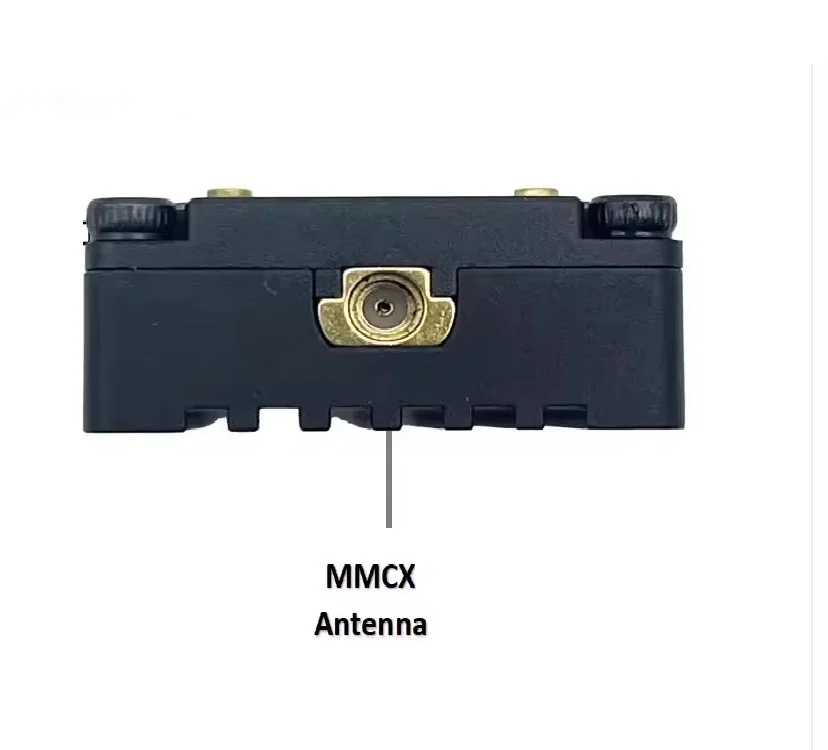

Antenna interface: MMCX
Modulation type: FM
Weight: 15.6g (including shell, excluding antenna)
Dimensions (length, width and height): 38mm*24*mm*11mm
Application
FAQ
Q: Are you a factory or a trading company?A: Professional manufacturer for FPV Drones and Accessories, 900+Workers,15000SQMS.
Q:How many can you make for FPV each month?
A: 80,000 PCS FPV Drone each month.
Q: What’s the lead-time for 2000pcs FPV Drones?
A: Around 2-3 weeks, but need to check before order.
Q: How many samples do you suggest to order?
A:Extrusion damage may occur during transportation. It is recommended to order more than two samples.
Q: What about the after-sale service?
A: Free to change if it doesn’t work.
Q: Can you accept OEM?
A: Yes, we can accept OEM, manufacture according to your requirement.
Q: What are your Delivery terms?
A: We accept EXW, FOB, CFR, CIF. You can choose the one which is most convenient or cost effective for you.
Q: What are yourmain produced items?
A: FPV Drones, Drone parts, Drone accessories, FPV drones Batteries.
Q: What is the payment terms?
A: T/T BankTransfer, L/C, Western union and Trade Assurance.
