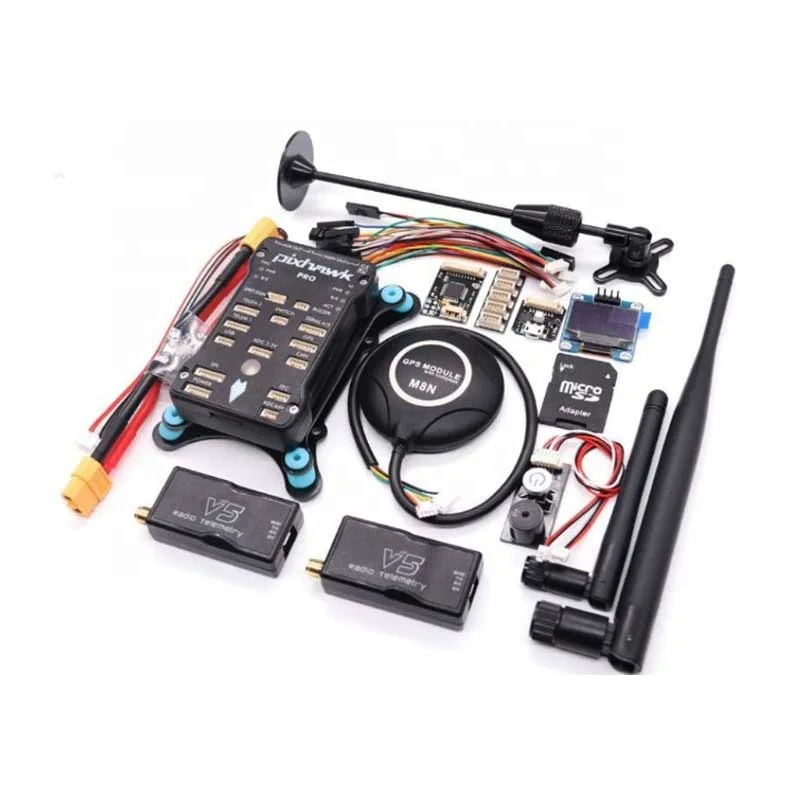

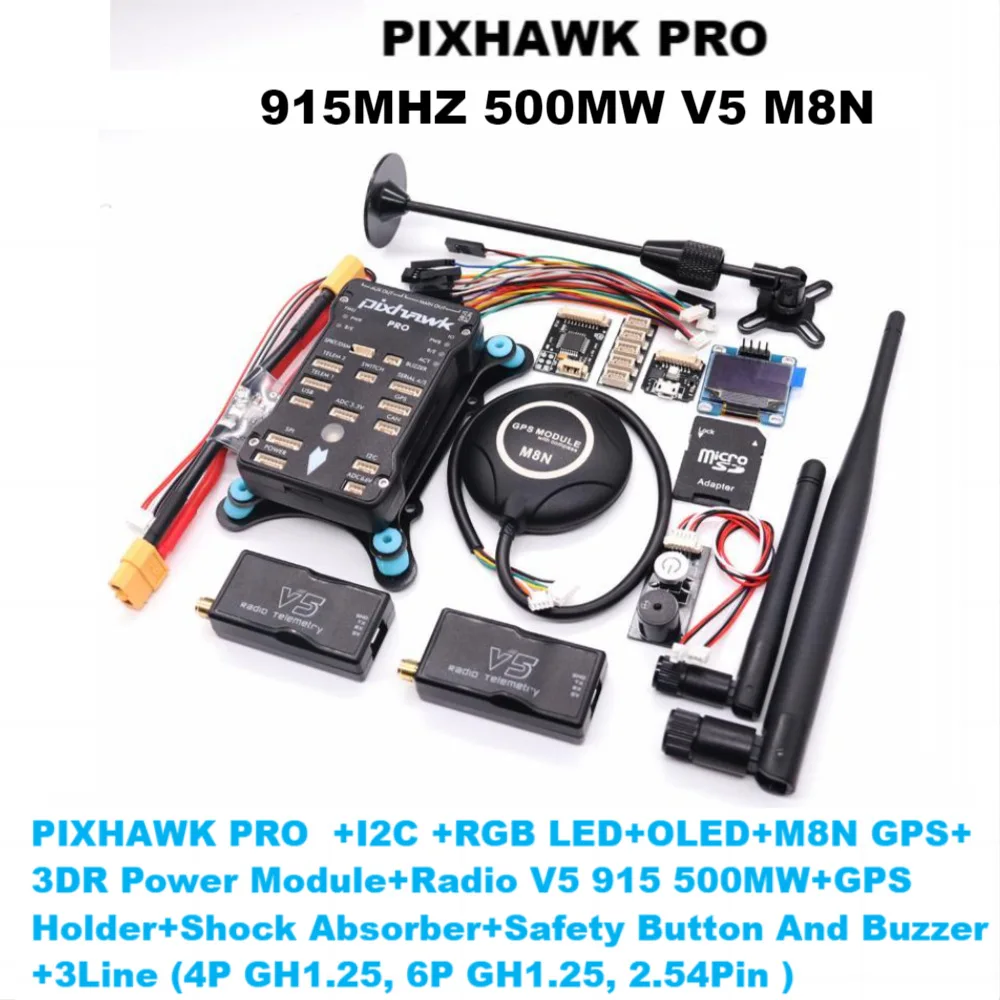

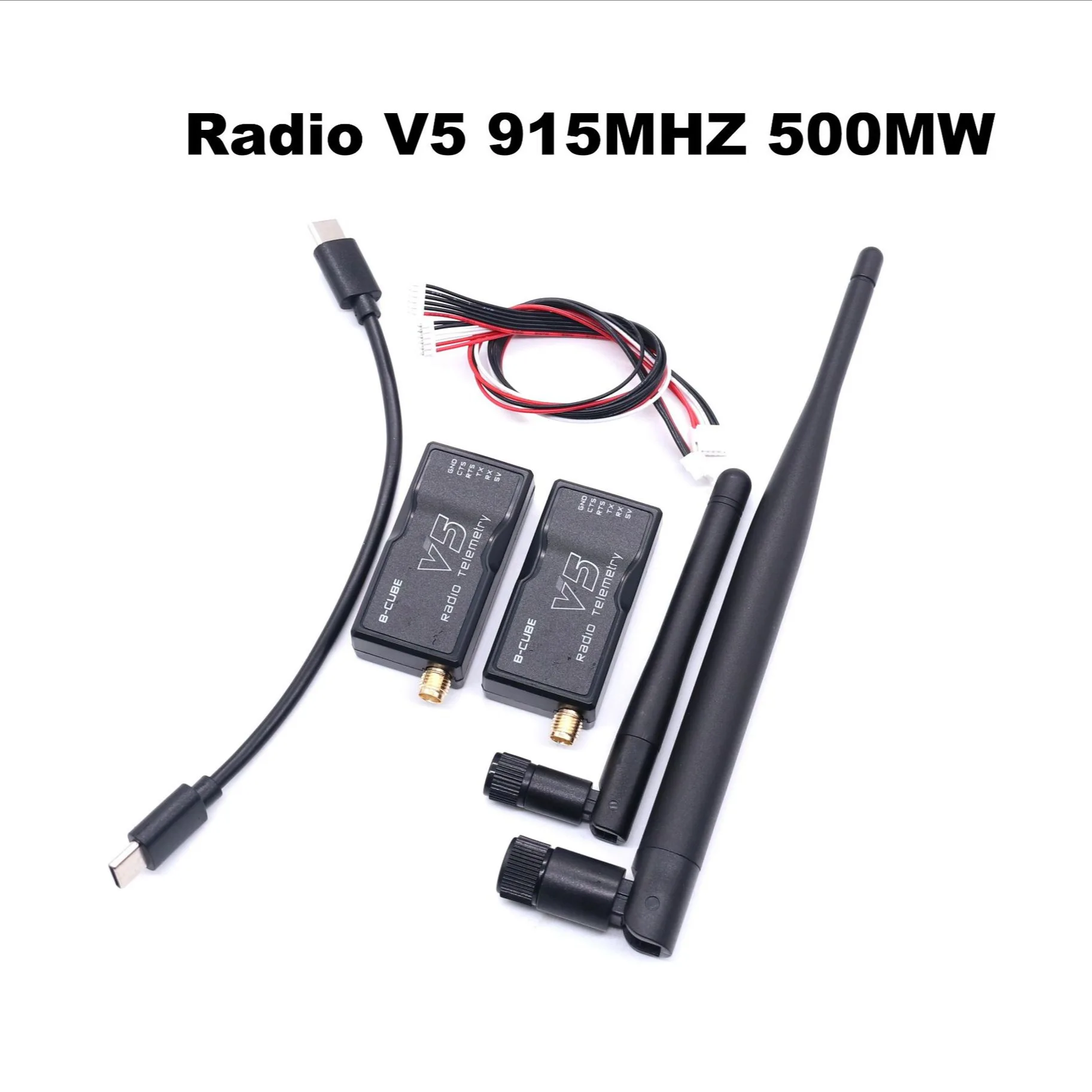

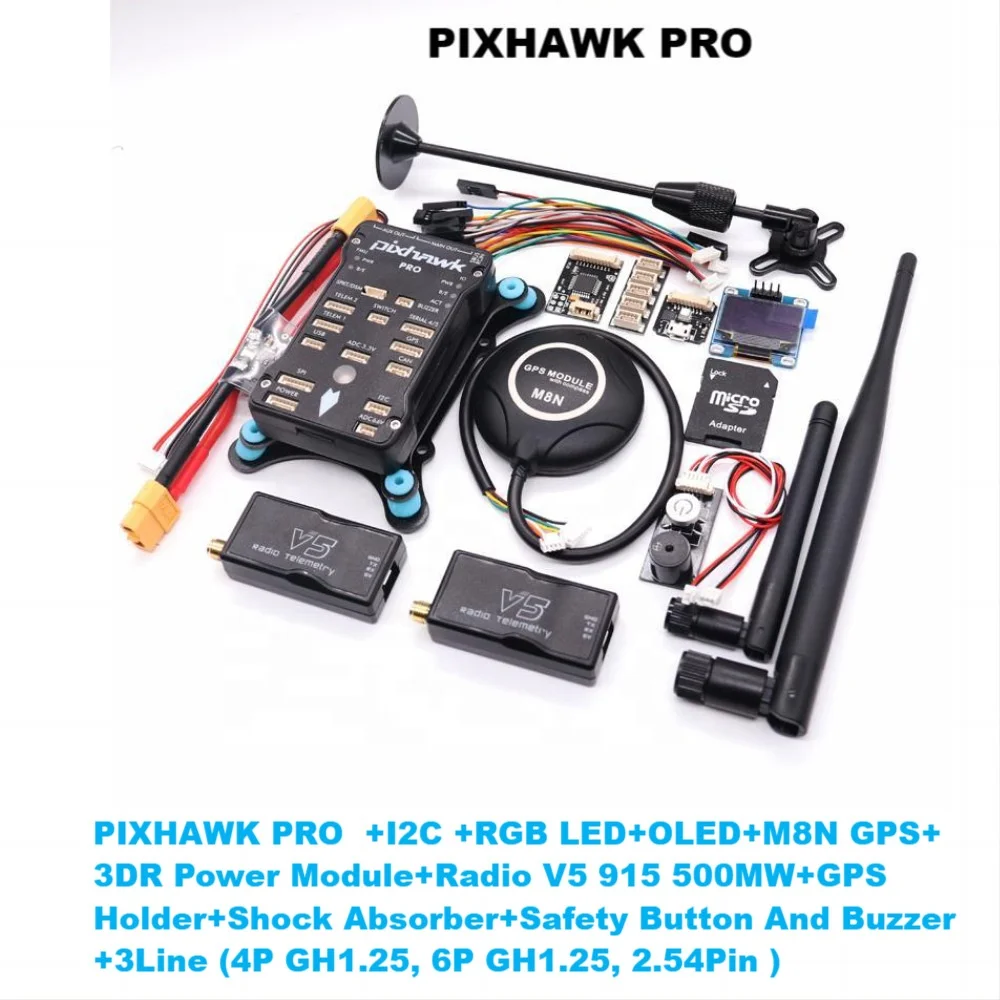

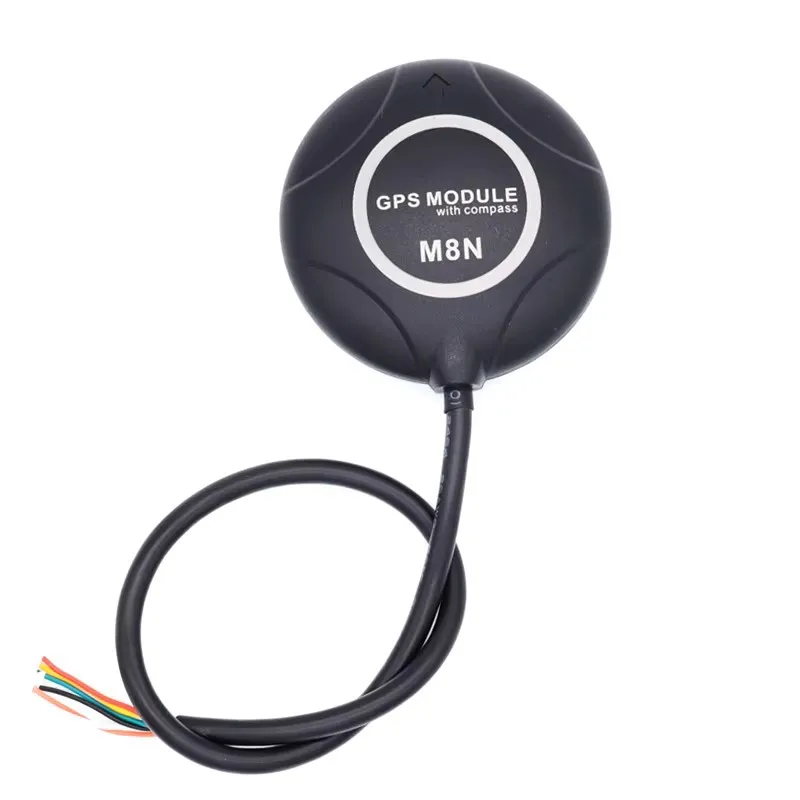

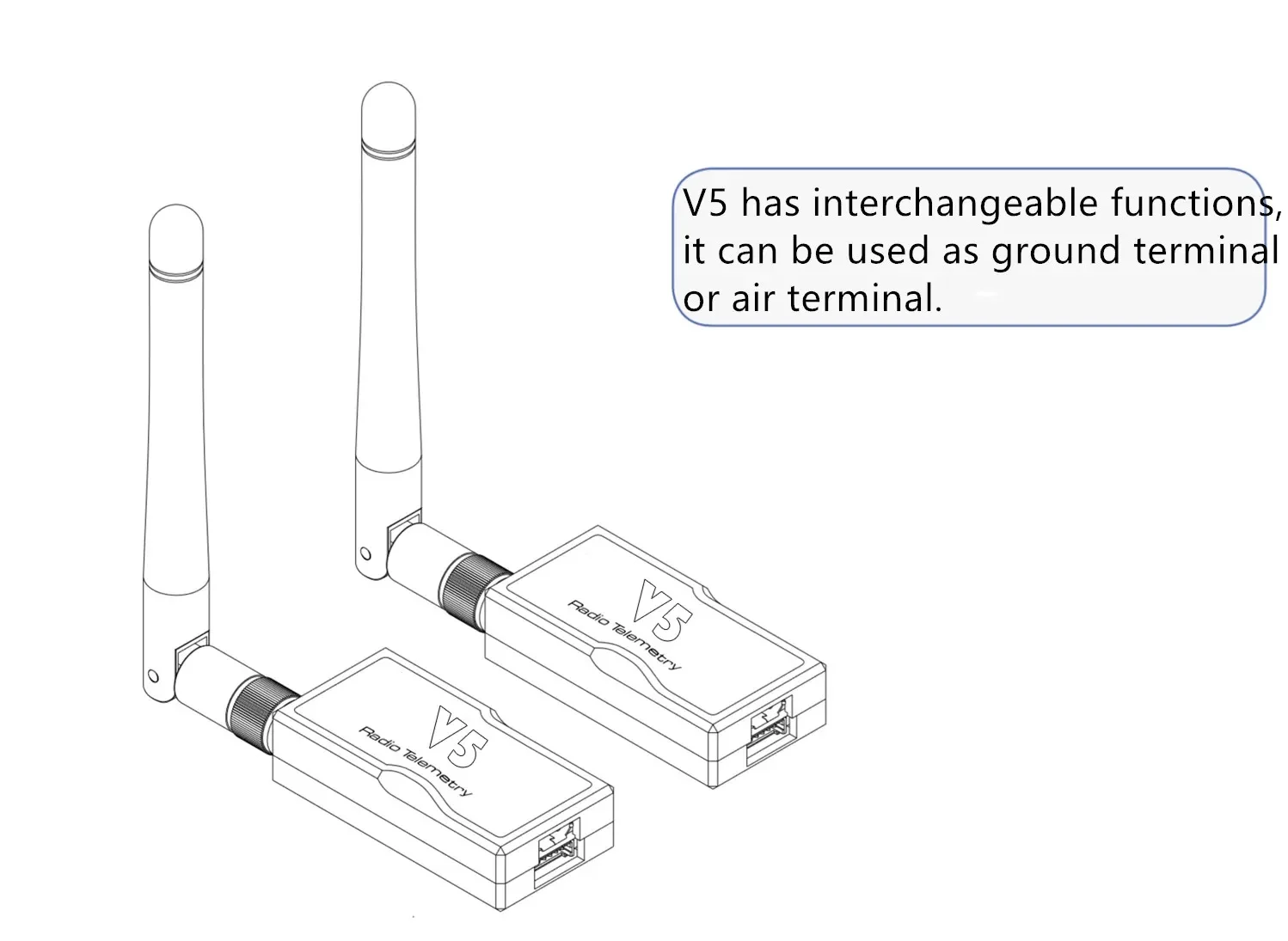

M8n Gps Pixhawk PRO M8N Autopilot Flight Controller for Four Rotors 915MHz 500MW Flight Controller for Drone

For PIXHAWK 2.4.8 :used for PIXHAWK2.4.8 AND APM2.8 Flight Control

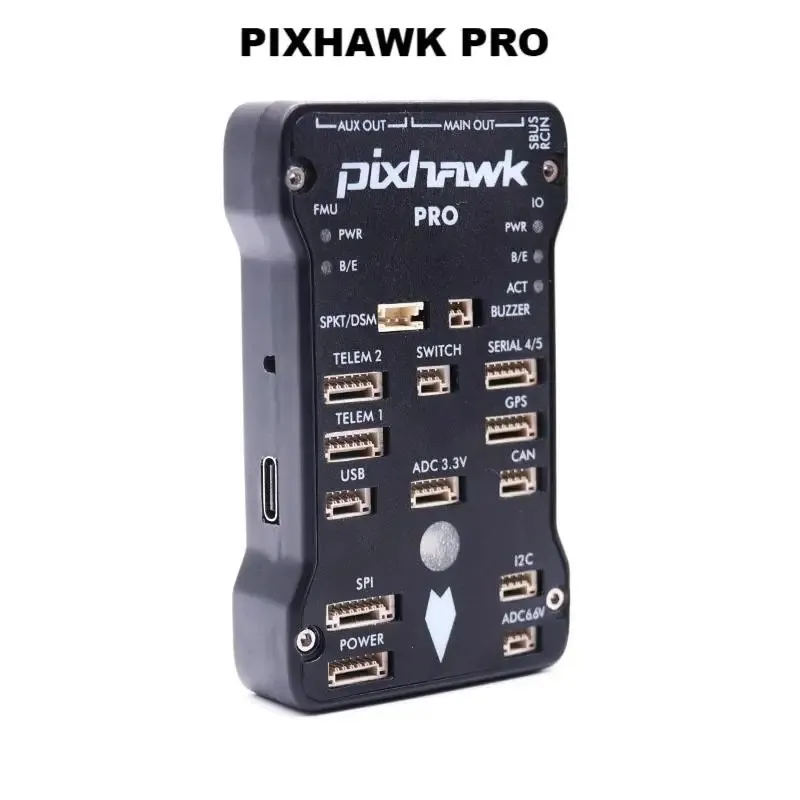

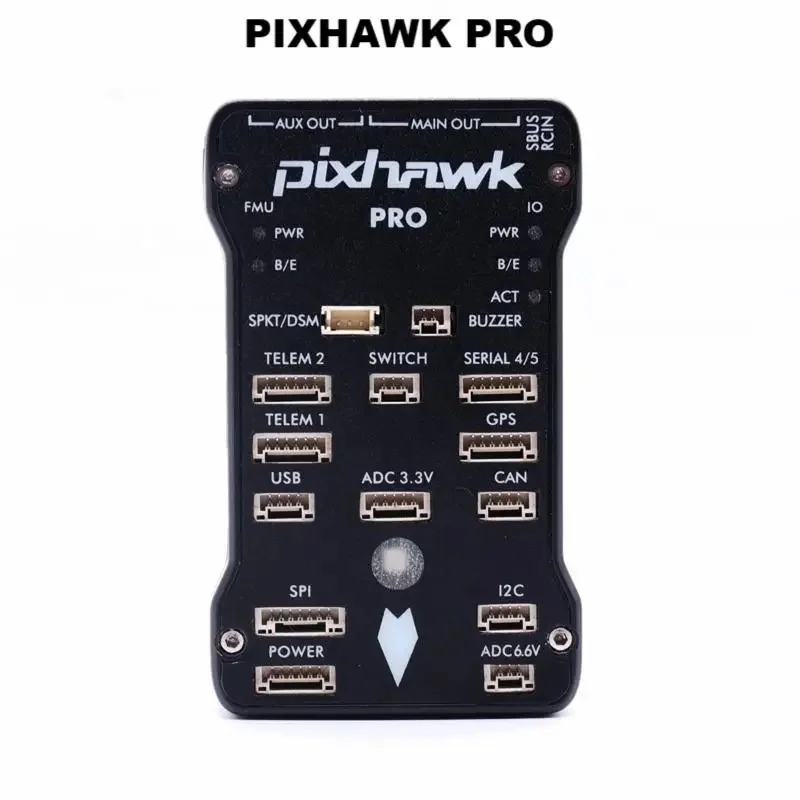

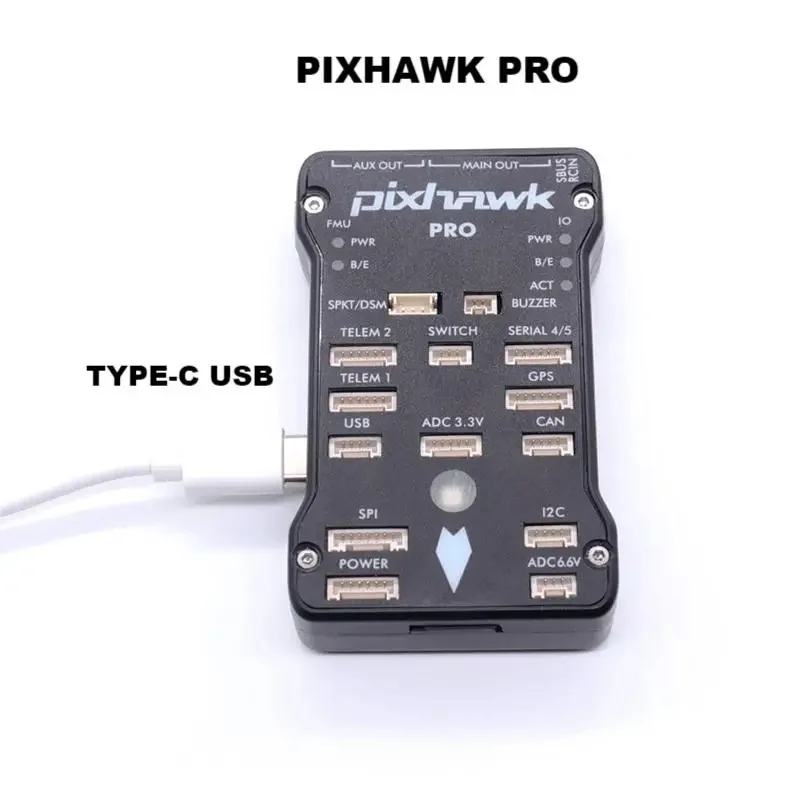

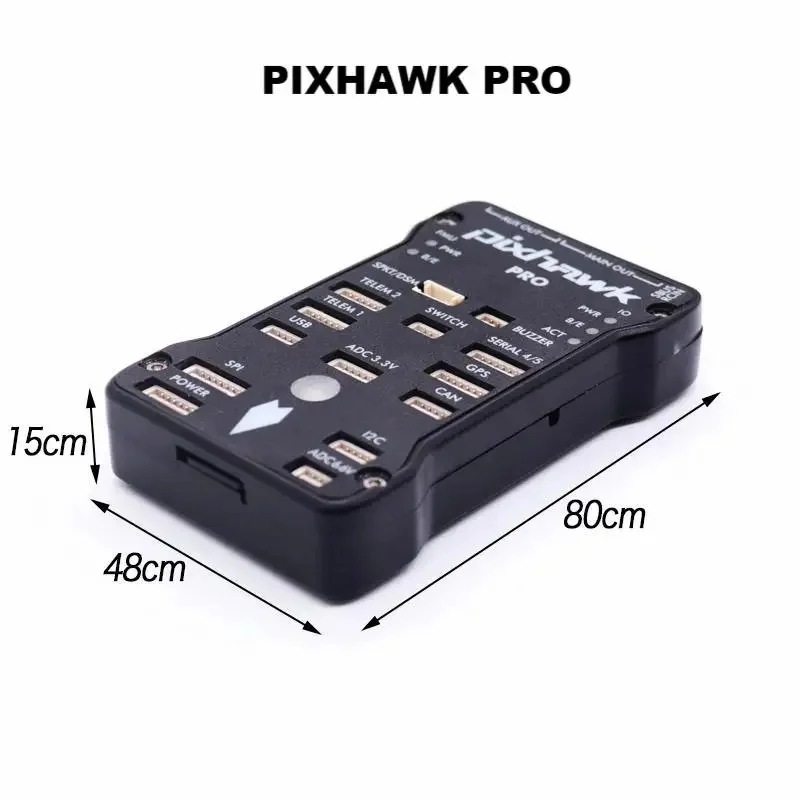

For PIXHAWK PRO :used for PIXHAWK PRO Flight Control
For PIXHAWK 6C :used for PIXHAWK 6C Flight Control

Description:

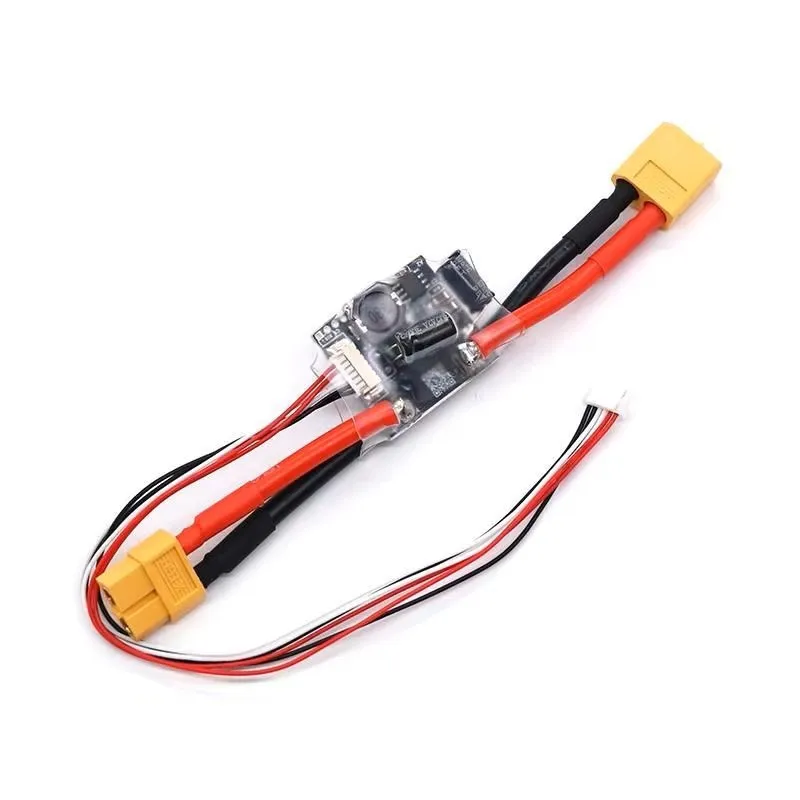

This Power Module PRO provides a simple way to supply regulated 5.2V to flight controller from the battery while providing current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable. It comes with pre-soldered wires, capacitor, and XT60 connector on both ends, along with shrink tubing on the PCBA for physical protection.

Specification:
Input Voltage: 2S-12S
PCB Cont. Current Rating: 60A
PCB Burst Current Rating: 100A (<60 Sec)
Max Current Sensing: 120A
Output: DC 5.2V & 3A Max
Voltage Divider: 18.182
Amperes per Volt: 36.364
Weight: 20g
Please Note:

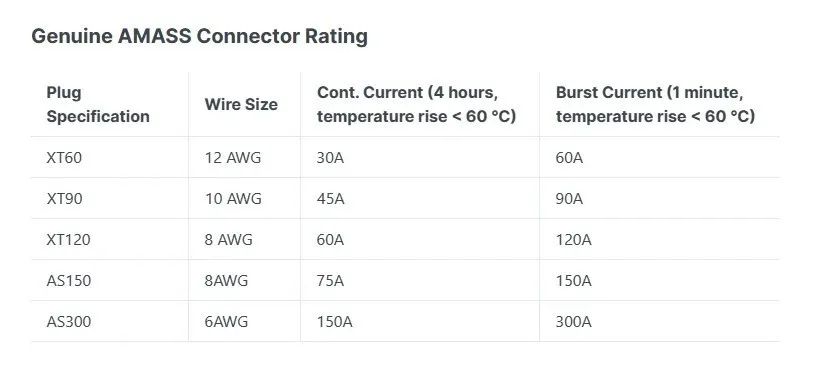

The XT60 Plug and 12AWG wire that are pre-soldered on the board is rating for 30A continuous current and 60A burst current (< 60 Seconds). If a higher current is being used, the plug type and wire size should be changed accordingly. You can refer to this chart for reference.
