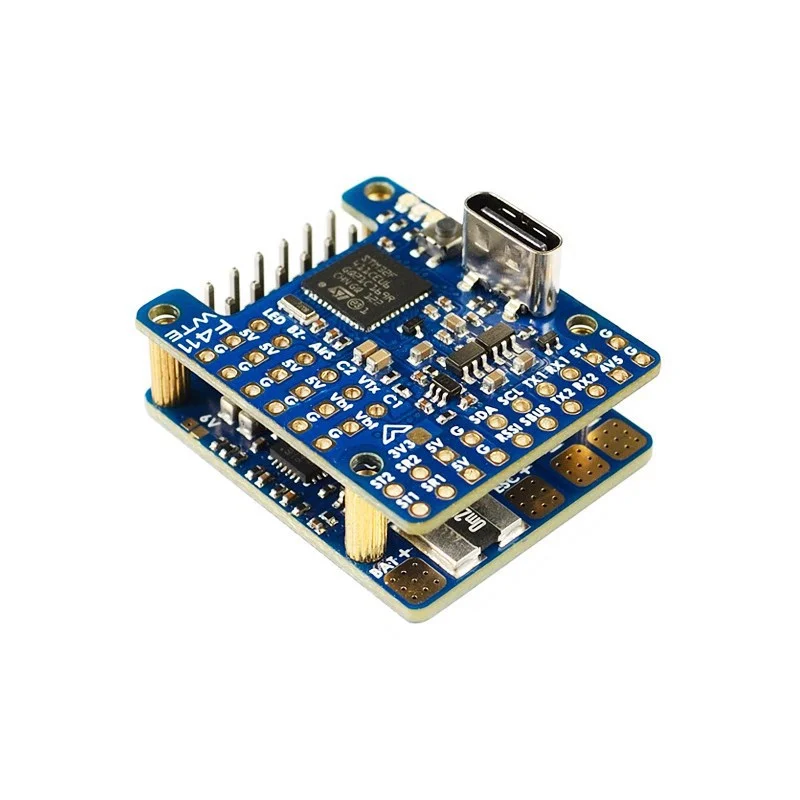

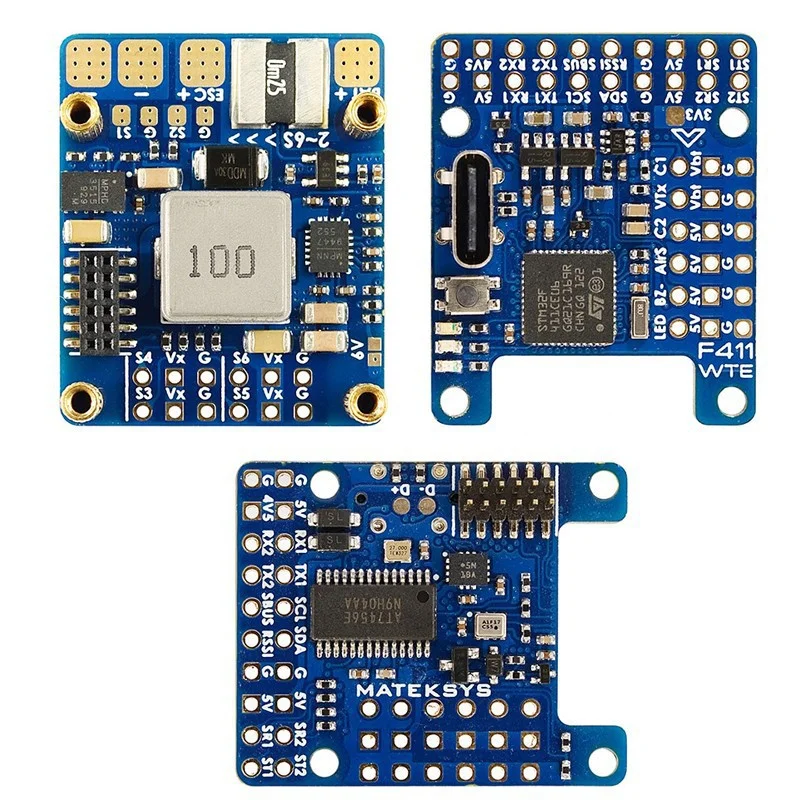

Description
MCU:100MHzSTM32F411CEU6Sensor:BMI270
Baro: SPL06-001 (12C)
OSD:AT7456E(SPI)
Black box: None
2xUART2x Full Softserial6x PWM outputs (2x Motors, 4x Servos)1x12C
4xADC (VBAT, Current, RSSl, AirSpeed) 3 LEDs (blue, red) and 3.3V indicator light (red) for FC status Built in inverter on UART2-RX for SBUSinput
Switchable dual camera input

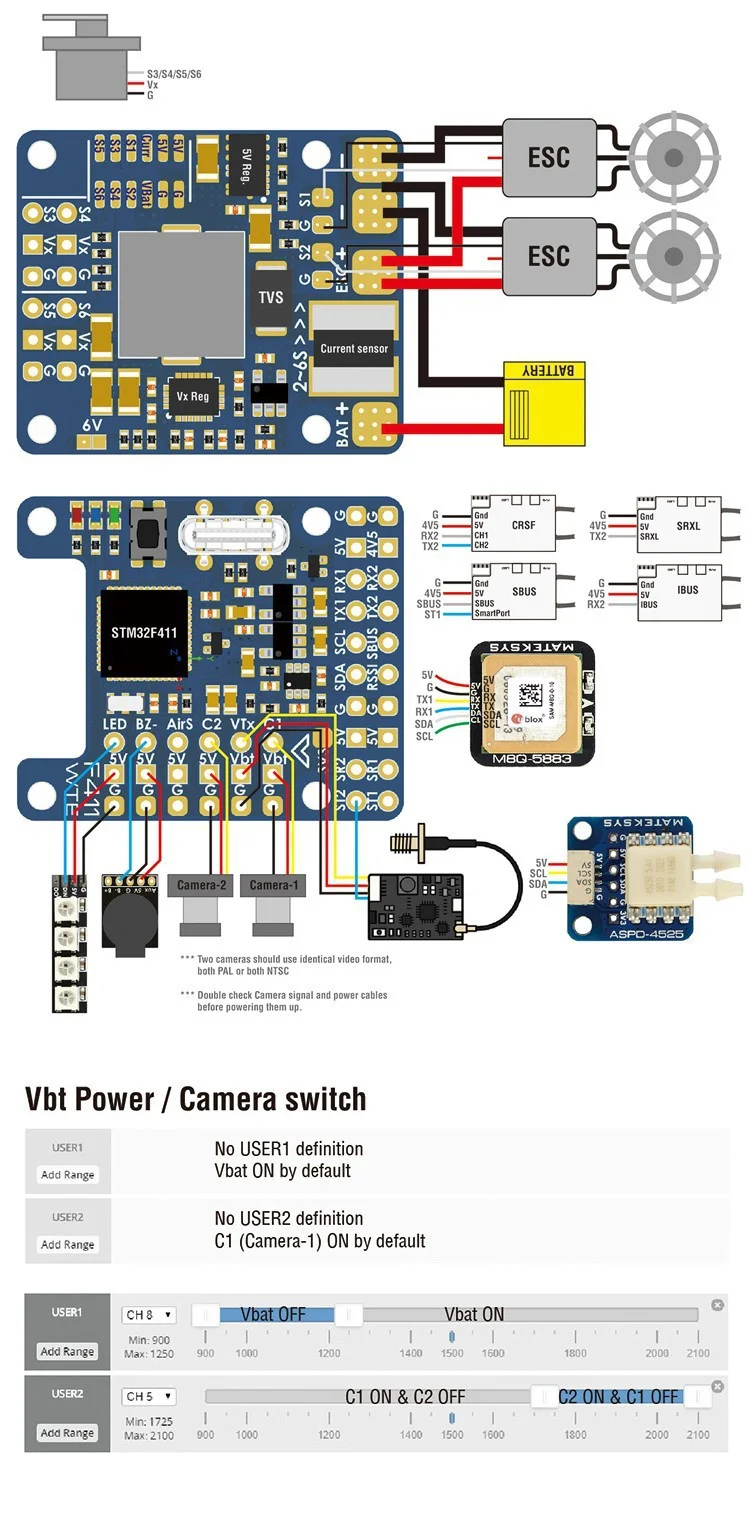

Vbat power ON/OFF switchable forVTX and cameraPPM receiver: not supported
Features
6~30V DC input (2~6SLiPo)
132A Current Sense (Scale 250)

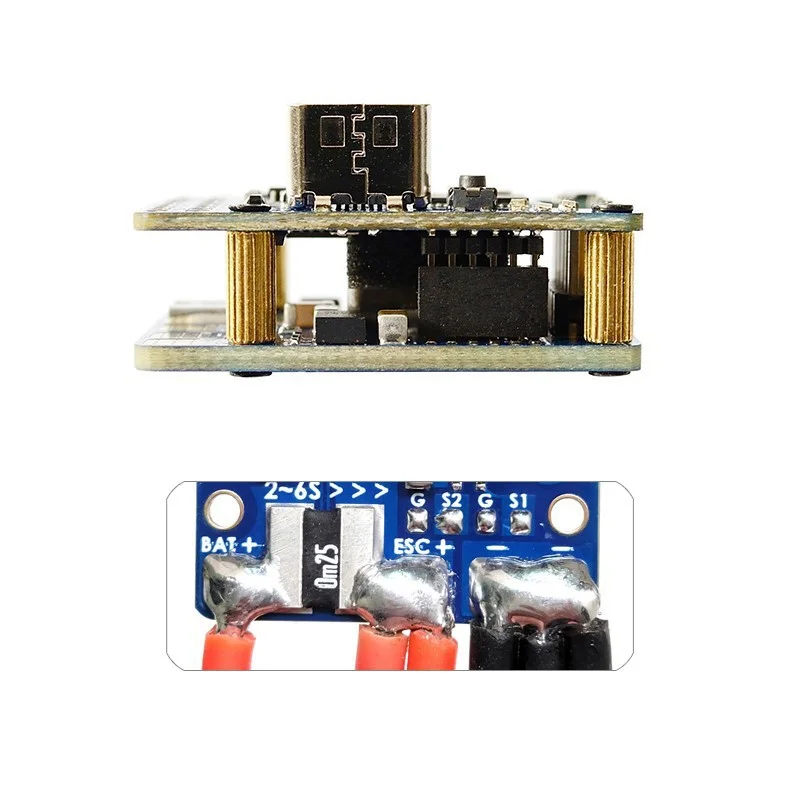

PDB/Current sense resistor: 90A continuous, 132A burst.
BEC5V 1.5A servo for FC and peripherals BECVx5A, 5V/6V option VTX and Vbat for camera (can be turned on/off) LDO 3.3V 200mA
BatteryVoltage Sensor: 1k:10k
FC firmware

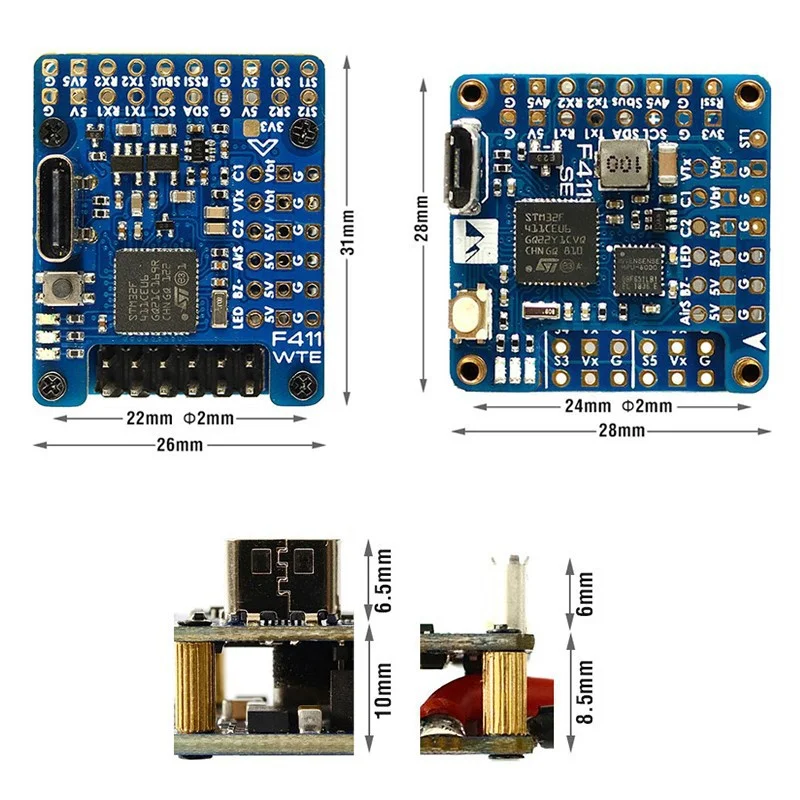

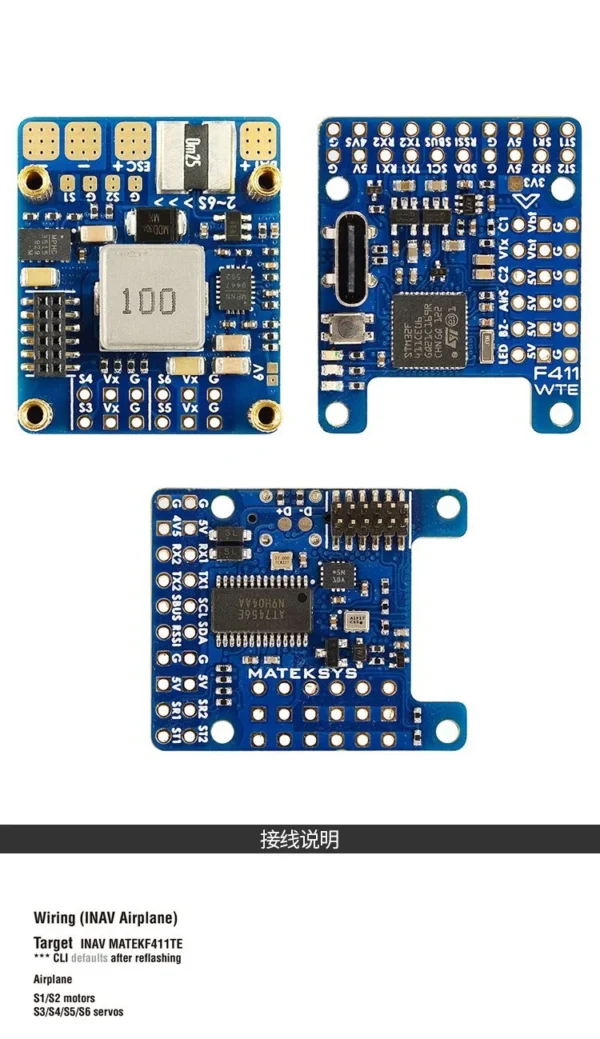

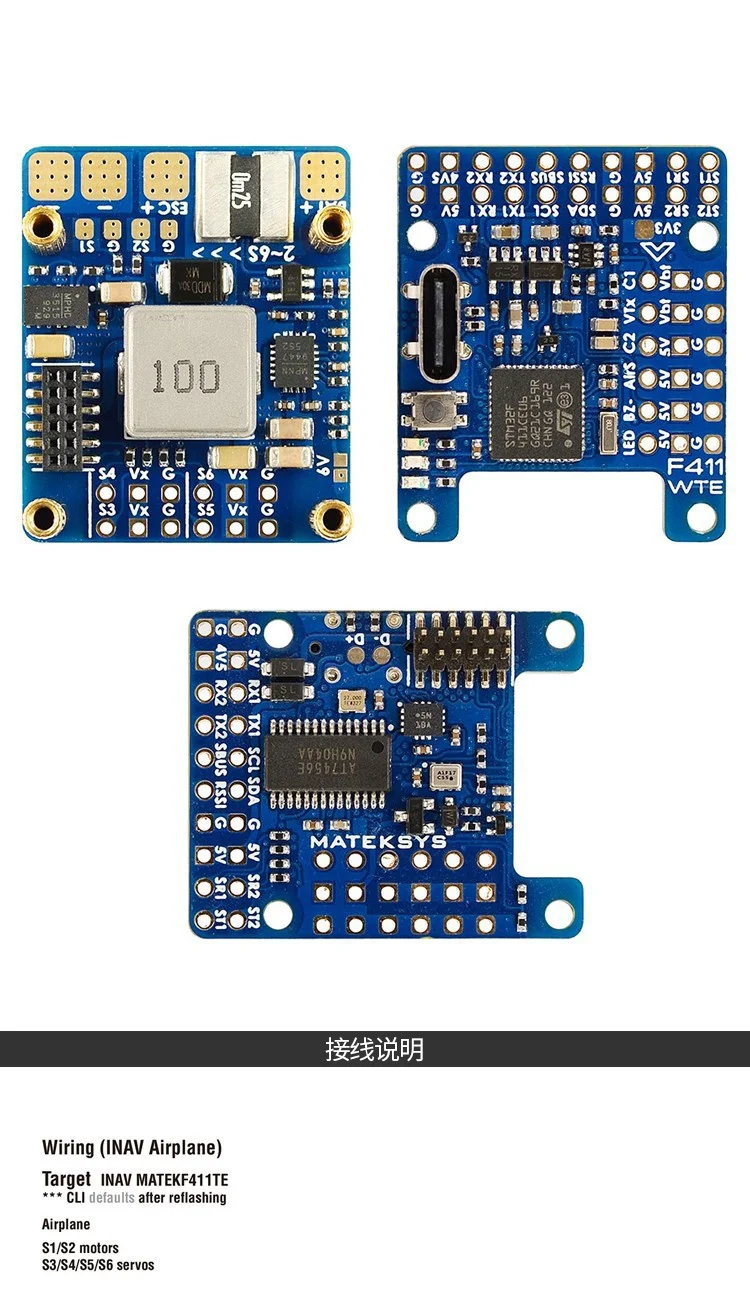

INAV target: MATEKF411TE (INAV4.1 or newer) Dimensions: 31x26x16.5mm Mounting: 22x22mm, center 2mm
Weight: 10g
132A Current Sense (Scale 250)
PDB/Current sense resistor: 90A continuous, 132A burst.
BEC5V 1.5A servo for FC and peripherals BECVx5A, 5V/6V option VTX and Vbat for camera (can be turned on/off) LDO 3.3V 200mA
BatteryVoltage Sensor: 1k:10k
FC firmware
INAV target: MATEKF411TE (INAV4.1 or newer) Dimensions: 31x26x16.5mm Mounting: 22x22mm, center 2mm
Weight: 10g
